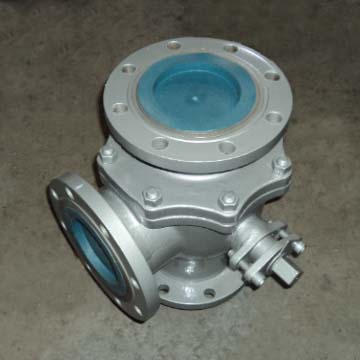

The Three Way Ball Valves, multi-port ball valves, have especially been designed to permit a 90° connection between two pipes of same bore. The special construction of the valves is such as to allow a smooth flow of fluids with minimum pressure drop and permit the pig to pass through the pipe without any interruption of the seal between the pig and the pipe. The valve is recommended for use in pipelines, where pigs or scrapers are to be diverted for a quick distribution of the fluid without pollution and with minimum pressure drop. The seal on the stainless steel ball is obtained by means of preloaded Teflon inserted rings.

Feature:

One piece or two pieces design

L type(3 way/2 ports) and T type(3 way/3 ports)

Floating ball

Full Port

Low torque value

Anti-blow out stem

Fire safe design and anti-static device

ISO 5211 mounting design upon request

NACE MR-01-75

Operate: Hand lever, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator

Standard:

Design and Manufacture:API6D, ASME B16.34

Pressure-temperature rating: ASME B16.34

Face to face(end to end):Manufacture standard

End Connection: ASME B16.5;

Test and inspection:API598,API6D

Fire safe:API607,API6FA
